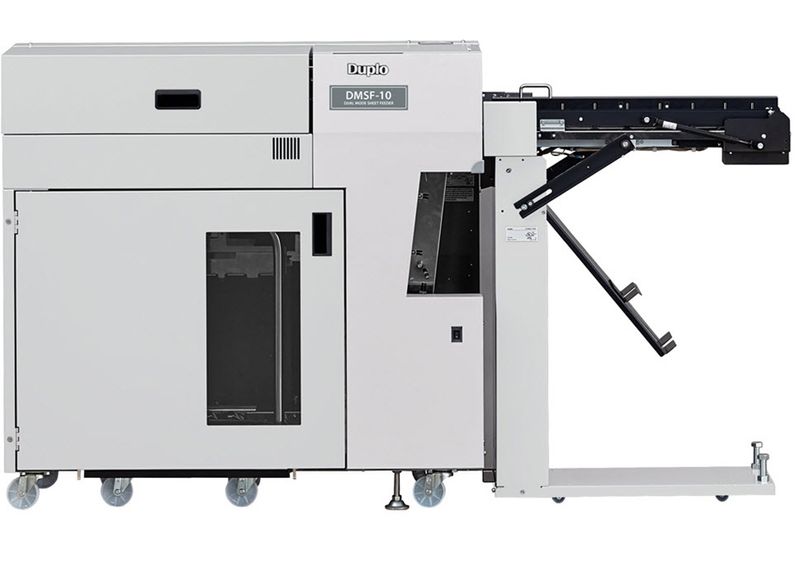

Duplo DMSF‑10 Dual Mode Sheet Feeder

Duplo DMSF‑10 Dual Mode Sheet Feeder

by Duplo

This “best of both worlds” finishing solution allows multiple printers, Xerox and non-Xerox, to share one finishing device. The Duplo DMSF-10 Entry Production Dual Mode Sheet Feeder runs in-line with your printer and can pass sheets to a downstream finisher, or accept stacks from other printers to finish downstream – giving you flexibility in your operations. This product is sold exclusively by Xerox. Visit xerox.com for more information.

Request a quote

Details

Specifications

Min & Max Sheet “Length” in the Process Direction
DMSF Top Tray (Tray A): 6.9 – 19.2 in. 177 – 488 mm

DMSF Bypass (Uses Tray & Paper Path): 6.9 – 19.2 in. 177 – 488 mm

DMSF High-Pile Bottom Tray (Tray B): 7.9 – 19.2 in. 203 – 488 mm

‍

Min & Max Sheet “Width” in the Cross-Process Direction
DMSF Top Tray (Tray A): 4.3 – 13.03 in. 108 – 331 mm

DMSF Bypass (Uses Tray & Paper Path): 4.7 – 13 in. 120 – 331 mm

DMSF High-Pile Bottom Tray (Tray B): 6.9 – 13 in. 177 – 331 mm

‍

Paper Weight Range Coated
DMSF Top Tray (Tray A): 65 – 350 gsm

DMSF Bypass (Uses Tray & Paper Path): 65 – 350 gsm

DMSF High-Pile Bottom Tray (Tray B): 65 – 350 gsm

‍

Paper Weight Range Uncoated
DMSF Top Tray (Tray A): 52 – 350 gsm

DMSF Bypass (Uses Tray & Paper Path): 52 – 350 gsm

DMSF High-Pile Bottom Tray (Tray B): 52 – 350 gsm

‍

Tray Media Capacity
DMSF Top Tray (Tray A): 500 sheets of 81.4 gsm

DMSF Bypass (Uses Tray & Paper Path): N/A

DMSF High-Pile Bottom Tray (Tray B): 3,000 sheets of 81.4 gsm

‍

Dimensions (L x W x H)
71.1 x 56.6 x 54.9 in.

(1,806 x 1,439 x 1,396 mm)

Duplo DMSF‑10 Dual Mode Sheet Feeder

Key Applications

Digital Print Work
