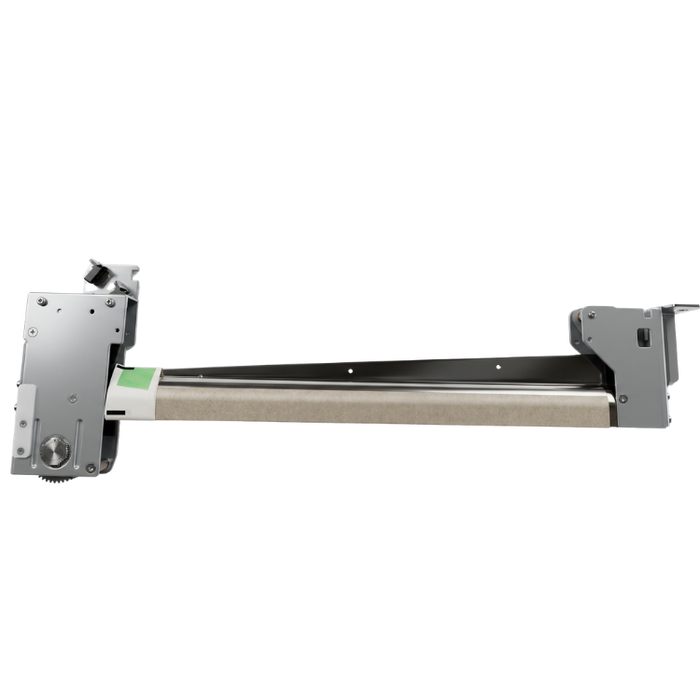

Duplo OEM Cutter Unit - DC-646 - Part W5-S0012

Duplo OEM Cutter Unit - DC-646 - Part W5-S0012

by Duplo
$2,090.77 - $2,090.77
$2,090.77
$2,090.77 - $2,090.77
$2,090.77

Genuine OEM Duplo cutter unit, part #W5-S0012, for the DC-646 slitter/cutter/creaser. Rated life cycle: 1,500,000 sheets. Supports up to 30 cuts per sheet, with minimum cut lengths of 3.0mm (lead edge), 3.0mm (gutter), and 5.0mm (trail edge). Minimum finished output size: 48.0mm x 50.0mm. Cutting accuracy: ±0.2mm.

Specifications

Duplo DC-646 — Cutter Unit Specifications

Cutting, Slitting & Creasing Capacity

  • Maximum cuts per sheet: Up to 30 (some configurations/pass limits rated at 25 — confirm which applies to your specific unit before publishing)
  • Minimum cut length: 3.0 mm (lead edge), 3.0 mm (gutter), 5.0 mm (trail edge)
  • Minimum finished output size: 48.0 mm (width) x 50.0 mm (length)
  • Accuracy/tolerance: ±0.2 mm

Host Machine Compatibility — Duplo DC-646

  • Processing speed: Up to 30 sheets per minute (A4, short-edge feed, 2 cuts + 1 crease)
  • Paper size: 210–370 mm wide, 210–670 mm long (up to 999 mm with optional extension)
  • Paper weight: 110–350+ gsm — supports coated, uncoated, and laminated stocks

Compatible With

Duplo DC-646

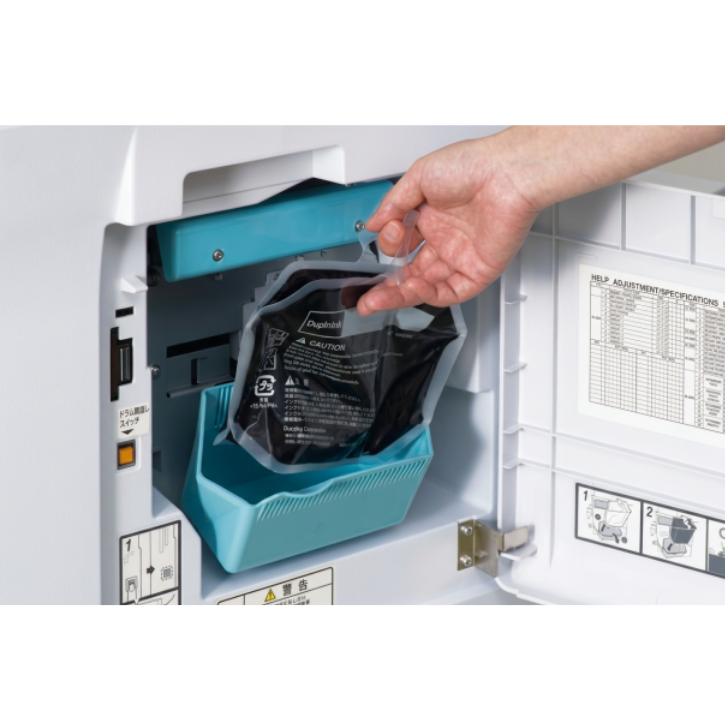

AAB-DX04SPLHINK Black Ink DP-X850
