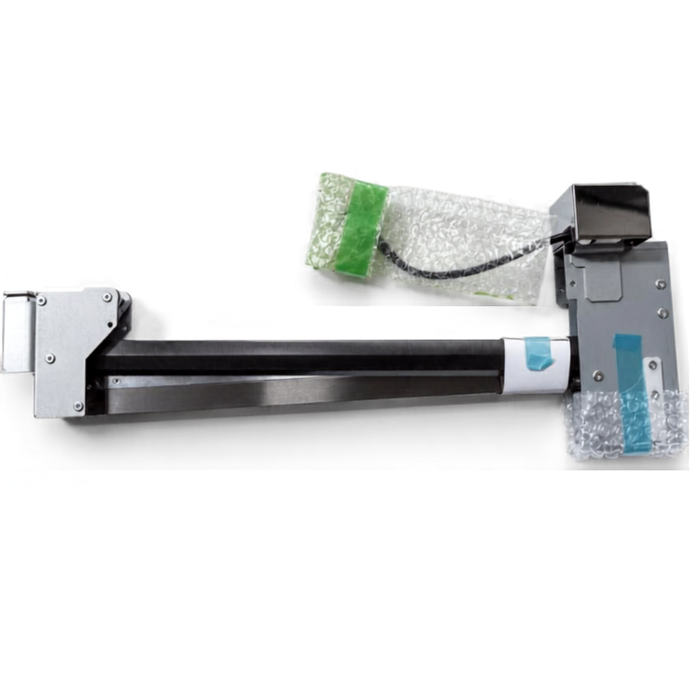

Duplo OEM Cutter Unit — DC-648 — Part #W5-S0012
Cutting, Slitting & Creasing Capacity
- Slits: Up to 8 per sheet (3 standard, additional available via optional modules)
- Cuts: Up to 30 per document
- Creases: Up to 20 per document
- Minimum cutting length: 3.0 mm (lead edge and gutter cut), 5.0 mm (trail edge)
Host Machine Compatibility — Duplo DC-648
- Maximum speed: 40 sheets per minute (camera off) / 38 sheets per minute (camera on)
- Input paper size: 8.26" x 8.26" to 14.56" x 39.37" (210–370 mm wide x 210–1000 mm long, extended options available)
- Paper weight: 110–400 gsm — supports uncoated, coated, laminated, and UV-coated stocks
- Feeder capacity: 4.72" (120 mm)
